Network terminal applications reimplementation specification

Release profiles

NT-C303-303-0-RUN and NT-G85-S45222-RUN are witness profiles. They MAY accompany a source profile in a comparison report, but their claim sets MUST remain separate. For example, NT-G4521-U445-SRC + NT-G85-S45222-RUN means “implement the selected source contract and compare the bounded world state,” not “prove that all source bodies are loaded unchanged in the world.”

Conformance levels

An L1 or L2 implementation MUST identify an inert or absent network adapter and MUST NOT describe the resulting shell as a successful remote terminal. An L3 implementation MAY use a project-owned scripted peer. L4 requires a peer inside the preserved harness's isolated namespace and a complete provenance record; it MUST NOT add an external route or expose a real login service.

Feature closures

A conformance declaration MUST name its selected closures. GENERA-TERMINAL is the outgoing client. The incoming REMOTE-TERMINAL, network-terminal server flavors, and their Set/Show/Halt commands are dependencies or a separate future closure; they MUST NOT be merged into the outgoing Terminal command table.

Public CADR and LM-3 evidence

The System 46 Git revision is 8e978d7d1704096a63edd4386a3b8326a2e584af. The maintained LM-3 Fossil check-in is 4df393c68d7f083ce42d5c377039d26043cc18a9031ace28258dc97f4137eb91. They are distinct historical lineages and MUST NOT be described as two directories within one release.

The maintained window/supdup.lisp is 110,143 bytes with SHA-256 e329911a2860d69976890f05c4a1c5fbf69f44b7831cb9fd72fe07fa81e28ca4. The CADR companion records the remaining byte identities and exact source regions.

Licensed Genera evidence-only artifacts

These artifacts remain local and untracked. Their identities permit an authorized researcher to reproduce the audit without reproducing their contents.

Optional cross-system handlers are identified in the Genera companion. Their presence in source does not prove residency in the System 452.22 world.

Standards cross-checks

The primary standards layer consists of RFC Editor copies of RFC 734, SUPDUP, RFC 746, SUPDUP graphics, RFC 747, SUPDUP extensions, RFC 736, the Telnet SUPDUP option, RFC 749, Telnet SUPDUP-OUTPUT, RFC 854, Telnet, RFC 855, Telnet option negotiation, and the implemented Logout, Binary, Echo, Suppress-Go-Ahead, and Timing-Mark options in RFC 727, RFC 856, RFC 857, RFC 858, and RFC 860.

These documents establish vocabulary and expected protocol shapes. Exact Lisp-machine behavior is determined by the selected implementation source and runtime tests. A standards discrepancy MUST be reported; it MUST NOT be silently “corrected” in a strict historical profile.

Normative evidence map

The historical dossier is an evidence narrative, not a substitute for this normative contract.

User-interface substrate and CLIM nonrelationship

System 46 and maintained System 303 use TV sheets/streams, Flavors, process objects, I/O buffers, full-screen window mixins, and direct display operations. They predate CLIM. SUPDUP, TELNET, and the shared BASIC-NVT are not CLIM application frames and do not use CLIM ports, grafts, panes, command tables, presentations, or redisplay.

Genera Terminal combines TV stream/select/graphics/minimum-window facilities with a Dynamic Windows typeout surface and Command Processor tables, arguments, presentations, input contexts, Accepting Values, output records, and marking. This is also not CLIM: the selected source defines no CLIM application frame or CLIM port/graft dependency. Shared vocabulary such as presentation, command table, frame, or redisplay does not change that ownership. A recreation MAY use CLIM as its porting substrate, but MUST describe CLIM as the recreation technology rather than a historical Terminal dependency.

Functional layers

A recreation MUST keep these layers independently observable:

1. Application selection and window ownership: find, create, force-create, bury, deselect, reactivate, and kill.
2. Disconnected argument acquisition: host/contact/service/options parsing and cancellation before a stream is committed.
3. Local control dispatch: the Network prefix, numeric arguments, Help, long commands, pointer menus, and literal escape transmission.
4. Keyboard translation: Lisp-machine character/list-event conversion to a protocol input alphabet.
5. Connection and negotiation: service selection, stream acquisition, option state, greetings, and protocol writes.
6. Remote-output decoding: network bytes to display operations or an intermediate simulator language.
7. Viewport and recording: screen mutation, scrolling, saved bits, Dynamic Windows records, optional history and journaling.
8. Process/error ownership: type-in, type-out, locks, interrupts, ticks, teardown, and propagation of partial failure.

A host prompt is not a connected terminal. A completed network open is not completed protocol negotiation. An output record is not a faithful screen image. A wallpaper journal is not a terminal transcript. A source-injected shell is not a pristine compiled-band application. These distinctions are normative.

Required adapters

Each adapter MUST support a no-network test configuration. Network MUST support scripted peers that can send malformed and truncated byte streams and record exact responses. The scheduler and filesystem MUST expose faults at every order-sensitive stage named below.

Terminal instance record

A portable implementation MUST expose a terminal-instance state logically equivalent to:

TerminalInstance {
  profile, application_kind, instance_id, window_state,
  connection_state, target, stream, input_chain, output_chain,
  typein_actor, typeout_actor, output_enabled, output_lock,
  escape_character, more_state, echo_state, overstrike_state,
  recording_state, journal_state, simulator_state, protocol_states,
  label, cursor, dimensions, saved_display_state,
  pending_argument, last_error, generation, trace
}

Fields MAY be represented differently, but every observable transition MUST be queryable by a test oracle. stream MUST be either absent or owned by exactly one connection generation. A filter or protocol state MUST name the generation for which it is set up. Errors MUST retain the stage and whether ownership was acquired, committed, reset, or released.

Connection states

The minimum common state machine is:

DISCONNECTED
  -> ACQUIRING
  -> BUILDING
  -> COMMITTED
  -> NEGOTIATING
  -> CONNECTED
  -> DISCONNECTING
  -> DISCONNECTED

Any intermediate state -> PARTIAL-FAILURE
PARTIAL-FAILURE -> profile-defined recovery, debugger, or explicit teardown

The historical sources do not implement this enumeration literally. It is an INTERP test model. A strict result MUST retain the profile's real commit point and partial-state behavior; it MUST NOT use the model as permission to make an historically nontransactional transition atomic.

Core invariants

1. A disconnected instance MUST not transmit ordinary keyboard input to a peer.
2. Local prefix input MUST be consumed locally except for the explicit literal-escape leaf.
3. A protocol logout request MUST precede the profile's close operation.
4. Bytes emitted by concurrent local-command and type-in paths MUST observe the selected output-lock rule; ordinary nonmatching paths MUST not be reordered.
5. A filter state MUST NOT be used before its selected setup stage or after its reset stage, except where a strict selected-source defect explicitly requires that result.

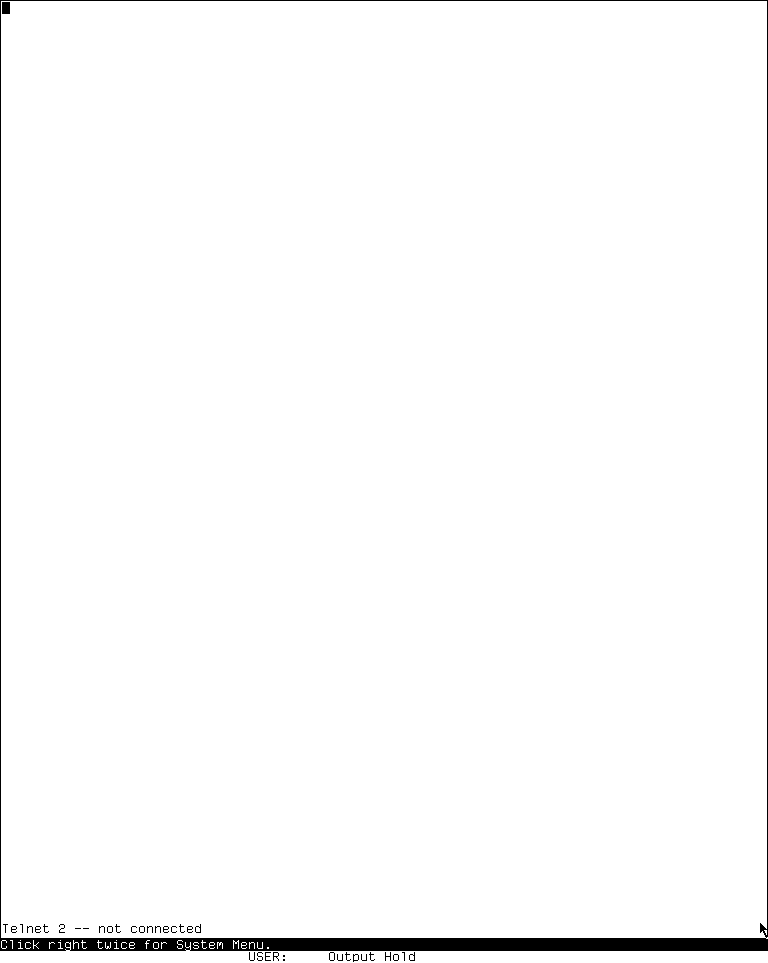

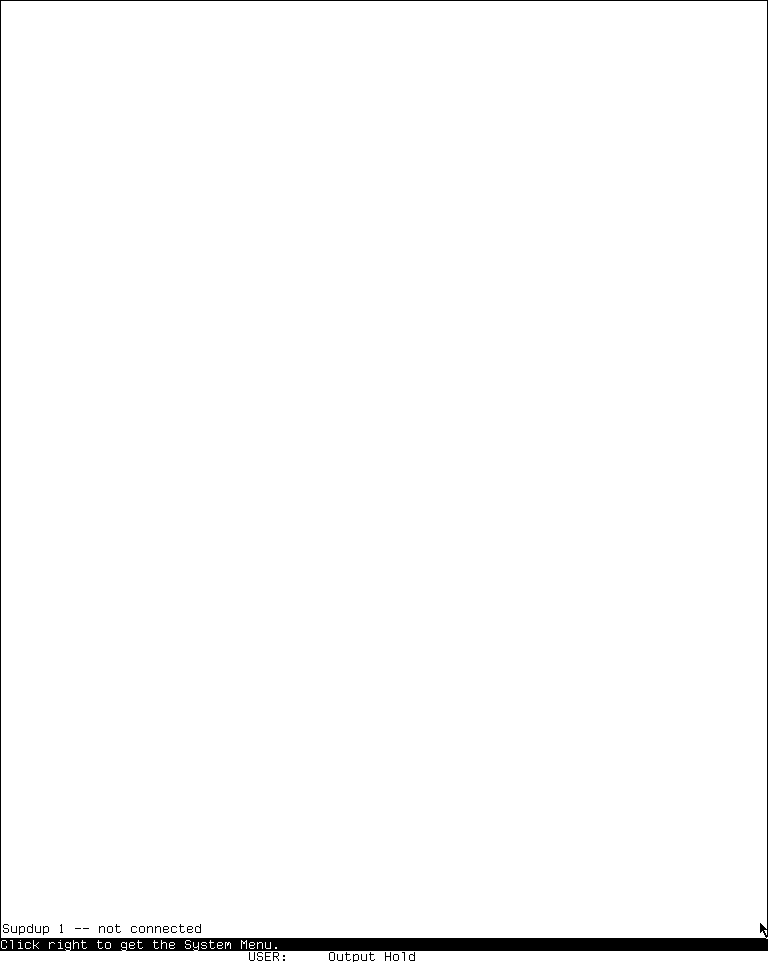

6. A disconnected label MUST not claim a remote peer. A connected label MUST be derived from committed connection state, not merely a pending target.
7. Bury/deselect MUST preserve a live connection unless the selected command also requests disconnect.
8. Kill, process failure, abort, and peer close are distinct events and MUST be separately traceable.
9. A strict source profile MUST preserve nontransactional partial mutations and source-visible bounds defects selected by the conformance label.
10. Runtime witness images establish visible relationships only. They MUST NOT be used as evidence for hidden state, peer I/O, or source identity.

Normative companion incorporation

The exact CADR input, parser, protocol, and effect inventory is normatively incorporated from Supdup and Telnet bindings and protocol semantics. The exact Genera tree is normatively incorporated from Terminal bindings, protocols, and simulators.

Those companions are part of this specification. A product cannot claim D10 L2 by implementing only the summary tables below. It MUST enumerate and inject every leaf in the companions, including inherited context trees, unavailable-method filtering, pointer cells, menu-only handlers, presentation actions, numeric argument states, Help paths, case aliases, collisions, shadowing, cancellation, fallthrough, and unbound input.

Shared entry and inherited interaction are incorporated from:

• program selection, activities, and window management;
• TV window system;
• Dynamic Windows; and
• the complete Input Editor and Command Processor trees named by the Genera companion.

Incorporation is profile-specific. It MUST NOT make a Genera Dynamic Windows gesture available in CADR, or a CADR TV action available in Genera when the selected runtime does not inherit it.

Entry context tree

CADR System 46 selected LMWIN
|-- System S -> Supdup
|-- System T -> Telnet
|-- System Menu Create -> Supdup / Telnet
`-- selected LMWIN Lisp entry paths

CADR System 46 LMIO/LMIO1 shadow lineage only
`-- Escape N
    |-- no argument or zero -> find/create old Supdup
    |-- argument 1 -> old Telnet
    |-- argument 2 -> create new old Supdup
    |-- argument 3 -> create new old Telnet
    `-- list/precomma argument -> select indexed existing old window

Maintained System 303 source
|-- System Menu/Create menu -> Supdup
|-- System Menu/Create menu -> Telnet
|-- Lisp SUPDUP / TELNET -> separate or bound by mode
|-- SUPDUP-SEPARATE / TELNET-SEPARATE -> reuse connected or idle/create
|-- SUPDUP-BIND / TELNET-BIND -> overlay caller window
`-- Peek host action -> protocol-specific remote login

Genera Terminal
|-- Select T -> generic activity selection/reuse/create
|-- Control-Select T -> force new Terminal through shared Select semantics
|-- Create menu -> always construct and select a fresh Terminal
|-- GET-NVT-WINDOW-TO-HOST -> reserve first eligible idle or create fresh; return only
`-- Peek network-host menu -> Remote Login -> direct lookup, then caller selects

The System 303 source profile MUST NOT advertise System-S or System-T. The live System Help in NT-C303-303-0-RUN listed only Top-L, E, I, L, and P. Historical supdup.lisp.322 registrations are lineage evidence, not the maintained profile.

CADR Network-prefix summary

The maintained System 303 default escape character is Network. One suffix is read after a temporary bottom-line CMND--> prompt. Required C303 leaves are Call/P, A, B/Break, C, D, E, I, L, M, O, Q, Help/?, Rubout, literal escape, and unknown. Availability is method-sensitive: the effective Help list and behavior depend on the selected flavor's implemented messages. E is implemented but omitted from computed Help in the maintained source. The selected System 46 LMWIN profile instead defaults to Break, also recognizes physical Network as a prefix while connected, and lacks the C303 A/E/O leaves; its exact tree is in the CADR companion.

No numeric-argument tree is owned by this prefix. Bound-window exit and separate-window bury/deselect MUST follow the selected entry mode. The companion specifies exact dispatch, cursor restoration, beep, output lock and protocol-specific leaves.

Genera Network-prefix summary

The fixed Genera accelerated-command denominator contains 63 normalized cells:

• 37 Standard Arguments cells;
• 12 Unshifted Arguments cells;
• 3 Colon Full Command cells; and
• 11 Terminal-local cells: A, B, D, F, L, M, Q, X, Help, Control-Y, and Meta-W.

Lookup is case-insensitive. Fixed cells are tested before the configurable literal escape. A configured escape that collides with any fixed cell is shadowed. Rubout normally cancels, but becomes literal when it is the configured escape because that test precedes the ordinary Rubout branch. Help reprompts; other successful commands leave the prefix. Unknown input beeps, clears pending input and argument state, reports the local error, and reprompts.

Only Network-M accepts a numeric argument among local leaves: absent toggles, zero disables, and every nonzero integer including a negative one enables. Control-Meta-Y belongs to full-command history and accepts its inherited argument. The companion specifies the exact sign, repeated Control-U, Infinity, and digit-composition rules.

Contexts beyond the prefix

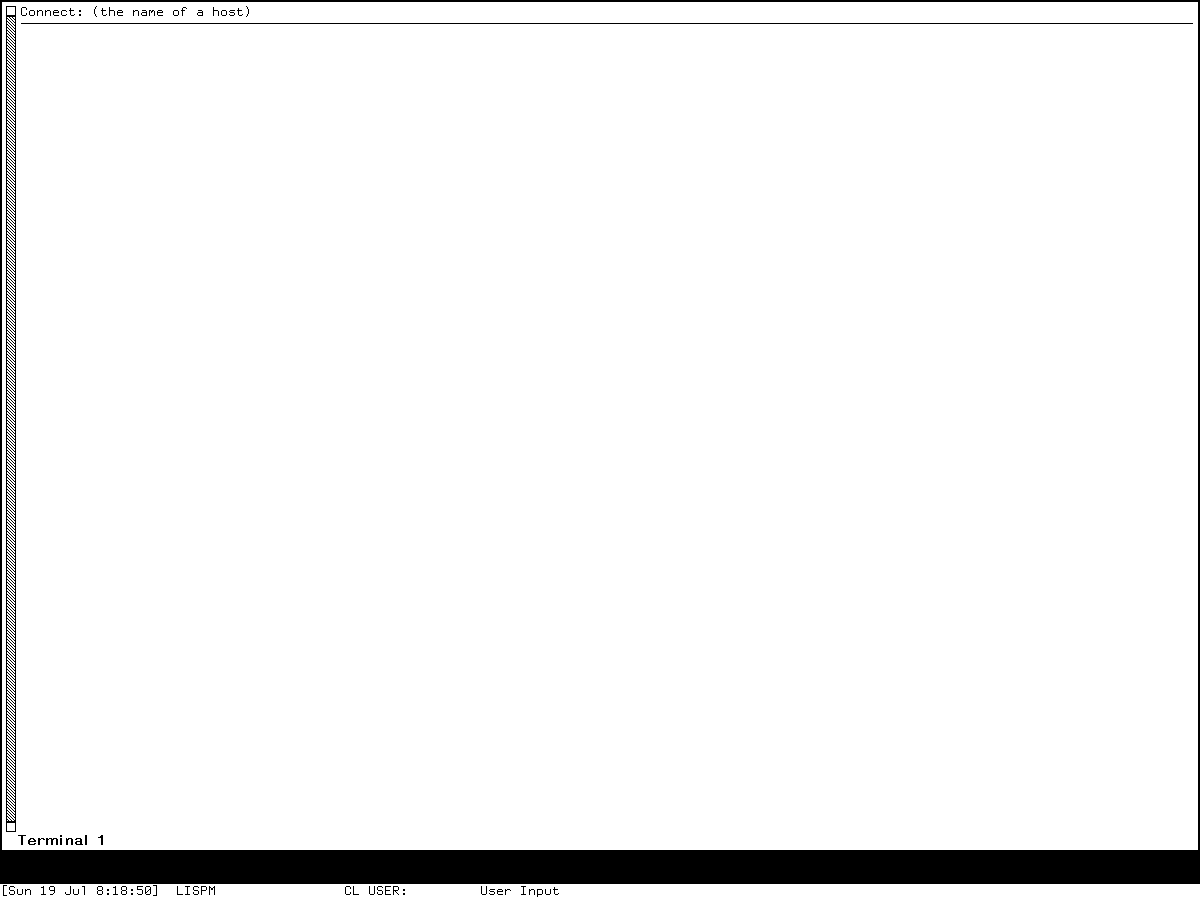

The disconnected Genera Connect prompt is a CP command-argument reader, not the 63-cell Terminal table. It MUST inherit the full selected Input Editor and Dynamic Windows completion, activation, Help, history, Rubout, Abort, pointer, and typed-value tree. Space after the host advances into keyword/value parsing; Return accepts defaults. Colon, Meta-X, Control-Meta-Y, command-name presentations, pathname arguments, and serial-format arguments enter their respective CP contexts.

Network-X enters the full Accepting Values transaction tree. Connected ordinary remote input bypasses input editing. Recorded text creates only the narrow (OR SI:INPUT-EDITOR TERMINAL-INPUT) presentation context. A conformance report MUST test these context transitions separately rather than calling the Network tree the whole application binding set.

Pointer, menu, presentation, and Help completeness

CADR pointer behavior is direct TV behavior plus the protocol-specific SUPDUP-OUTPUT mouse report described in the companion. It is not a presentation database.

Genera MUST inject all 96 raw Dynamic Windows pointer cells through the resolver and evaluate the applicable Marking-and-Yanking, generic window, System Menu, optional Hardcopy, optional Image Substrate, and presentation-debugging handlers. Terminal's relevant base gestures include Control-Left marking, Control-Shift-Middle mark word, Control-Middle yank word, and Control-Right menu. Application-specific marked-text send, shared kill-ring, unmark, clear, save, extend, and conditional hardcopy actions are exact leaves, not prose examples.

The reader-commented mouse-position translator in the Genera source is inactive. Help is curated and not exhaustive. Network-F is live but omitted. The seven single-key Help rows that are presentations and the six long command-name presentations MUST be tested as pointer paths; the Control-Y presentation lacks the accelerator-supplied string argument and remains TODO-ORACLE-G-HELP-CY for the System 452.22 world.

Exhaustive enumeration requirement

An L2 test harness MUST generate the effective tree from the selected registries, not from Help prose. For every reachable leaf it MUST record:

• raw event and normalized event;
• context, mode/pane/window and selected profile;
• prefix and argument state before and after;
• winning binding and all shadowed candidates;
• enabled/disabled predicate and inherited owner;
• emitted local transition, display effect and network bytes;
• Help exposure and presentation/menu reachability; and
• unbound, cancel, beep, error, fallthrough or repeat result.

The harness MUST fail when the generated denominator changes without an explicit profile update. Genera's 63 fixed prefix cells and 96 raw pointer cells are independent denominators. Letter case aliases do not increase the fixed-cell denominator.

CADR separate and bound operation

Maintained separate Supdup/Telnet entry without a path first selects any connected window of the required kind. Otherwise it reuses an idle window or constructs one, sets the target, exposes it cleanly, and selects it. The default Supdup mode chooses separate operation.

Bound operation creates a resource window that overlays the caller's selected window, uses the caller's current process for type-in, assigns a resource type-out process, connects, runs type-in under a selection substitution, and returns when Network-Q or an abort exits the catch. A strict recreation MUST distinguish this borrowed-process path from a separate window with two owned processes.

Selection or exposure lazily resets/runs owned type-in and type-out processes. The initial label is <name> -- not connected. A connected size change is rejected where the selected protocol's advertised geometry would become false.

The maintained default SUPDUP-FLAVOR is ordinary SUPDUP. Recording/local editing belongs to an alternate flavor state. A recreation MUST NOT describe the default Supdup window as recording or SUDS-local-editing merely because that machinery occurs in the same source file.

Genera creation, reuse, and initial state

An NVT-WINDOW is considered in use when it has either a committed network stream or a pending target. Direct remote-login lookup scans the previously selected array in order under interrupt suppression and MUST reserve the first window with neither; its setter flushes typein before storing the target. If none qualifies, construction occurs after leaving the protected scan. The lookup returns without selecting; Peek selects its result. Generic Select-T follows the incorporated D02 activity policy, including Control force-create, while Create always constructs and selects a fresh window. Construction allocates separate type-in/type-out processes and presets their top levels.

The selected source initializes overstrike true, output recording true, wallpaper off, character attribute NIL, echo row zero, output tick zero, saved bits, disabled asynchronous characters, ragged border, left scrollbar, bottom Swiss-bold label, white margins, end-of-page scrolling, and a disconnected label tag; the constructor does not visibly call label recomputation. Separately, the live NT-G85-S45222-RUN initial frame displayed Terminal 1. A strict source profile MUST preserve the initialized field, and a runtime-witness profile MUST preserve the visible label, but the screenshot cannot reveal hidden state or establish when recomputation occurred. That relationship is TODO-ORACLE-G-INITIAL-LABEL.

Function-bury and the Bury Window command preserve connection state. The command may wait indefinitely for deexposure followed by reexposure. Kill terminates the two selected-source processes; whether inherited cleanup reliably closes every stream is TODO-ORACLE-G-KILL-CLEANUP.

CADR path grammar

The maintained parser accepts:

The maintained executable parser reads a slash-suffixed Internet socket in decimal, although its source comment and Help say octal. NT-C303-4DF-SRC strict behavior is decimal. The discrepancy MUST be exposed; it MUST NOT be “fixed” from the prose.

Supdup and Telnet apply protocol-specific default contact/socket values after parsing. Resolution failure, gateway failure, contact refusal, timeout, and nonresponding host MUST remain distinguishable error values.

Genera service and option resolution

The source-defined Connect command is an argument template. Calling its body signals an error. Terminal top-level reads its arguments and invokes the window's real connect method. The complete keyword surface is Login Protocol, Connection Protocol, Terminal Simulator, Echo, Overstrike, Record Output, and Wallpaper File.

Selection MUST follow this matrix:

1. With neither protocol override, request the most desirable applicable LOGIN service.
2. With only Login Protocol, find a path for that named login protocol.
3. With explicit Connection Protocol, default a missing Login Protocol to LISPM-null-Telnet, replace the connection path's arguments with the simulator service arguments, and invoke the connection through the login path.
4. Wrap character services in the selected adapter required by the historical generic-network limitation. A wrong stream kind signals the selected continuable error.

Simulator string names compare case-sensitively; symbol names use identity membership. VMS-family host types default to VT100, other ordinary hosts default to Ambassador, and a failed registry substitution leaves Glass. CTERM is a manual example of a host-provided protocol, not one of the seven builtin declarations in this source.

CADR process and error handoff

Separate NVT windows own type-in and type-out processes. The type-in actor prompts, connects, reads local input, dispatches Network commands, and writes remote input. The type-out actor reads remote output, interprets it, and reports EOF or network state to the type-in side. Local commands that write protocol bytes acquire the output lock used by type-in/type-out paths.

The type-out actor MUST distinguish remote close, connection loss, host down, and unknown connection state and hand an error reason to type-in. A strict implementation MUST reproduce the source's process-reset and flushed-process handling. It MUST test failure before window creation, after creation but before process setup, during connect, during greeting, during display effect, during logout, and during close.

Genera connect order

NT-G4521-U445-SRC connection is nontransactional. A strict implementation MUST execute and trace this order:

1. acquire stream, input/output filter flavor lists, and provisional label while suppressing typeout completion;
2. assign the provisional label;
3. select overstrike from explicit option, otherwise false for Unix/VMS-family hosts, otherwise the global true default;
4. set output recording;
5. clear character attribute;
6. remove the typeout helper;
7. reset the echo row;
8. clear recorded history;
9. construct and wire the input chain;
10. construct and wire the output chain;
11. commit NETWORK-STREAM;
12. recompute the label;
13. set up input filters from keyboard outward;
14. set up output filters from screen inward;
15. set up every accumulated state block;
16. optionally enable local echo;
17. optionally open the wallpaper journal; and
18. reset and enable the type-out process.

There is no unwind cleanup around the complete sequence. A precommit acquisition or construction fault may leak a stream or helper. A postcommit fault may leave a partially connected window. A corrected transactional implementation MAY be offered only under an explicit non-strict label.

Genera connected loop and output process

Host parsing and the whole connect method execute outside the connected loop's local condition handler. Acquisition/build/setup failures therefore are not converted to the ordinary displayed “connection closed” reason by that handler.

Once connected, unrecovered command or protocol failures cross the connected restart, run disconnect cleanup, and become a displayed reason. Network EOF/error injects a local error indication and disables output. Accelerator-reader errors are narrower: they beep, clear local reader state, report, and reprompt without disconnecting.

Negotiation and ordinary type-in writes share the selected write lock. Filter setup, simulator splicing, and output-tick rebuild are not all protected by that lock. An L3 strict test MUST explore the resulting race windows; it MUST NOT silently add an atomic chain replacement while claiming exact source behavior.

Genera disconnect order

A strict disconnect MUST:

1. disable the type-out process;
2. close the wallpaper journal;
3. abort-close the network stream;
4. reset input filters from keyboard outward;
5. reset output filters from screen inward;
6. clear the network stream;
7. reset every accumulated state block;
8. install and recompute the disconnected label; and
9. reset and enable the type-out process.

This path also lacks a complete unwind guard. Injected close/reset failure may leave output disabled, the stream committed, and a later outer cleanup attempting a second disconnect. Logout bytes are written immediately before abortive close; the source waits for no acknowledgement.

More belongs to the window and survives reconnect. Recording, overstrike, echo, escape filter, wallpaper, simulator and history are rebuilt or reset by the connect path. State-block objects persist but receive reset/setup transitions.

Genera option application

Network-X snapshots displayed values, enters Accepting Values, and on successful exit applies wallpaper, escape, More, overstrike, output recording, echo, simulator, then output tick. The transaction is not atomic. A failure preserves all earlier mutations.

Replacing wallpaper closes the previous file before opening the replacement. Open failure therefore loses the previous journal. Replacing the simulator clears input translation, constructs and splices the new simulator, sets it up, replaces the output-chain root, and recomputes the label. The old simulator is not reset and the splice has no encompassing output lock or tick transaction.

More processing

The More/Escape input filter treats local :ERROR as a thrown connection error and stores/releases :MORE state. With More pending, the next non-escape input releases and consumes the event. The escape character instead enters local command mode and does not release More. Exact nested, repeated, disconnect and error cases are required tests.

Maintained CADR Supdup refuses local More because the source identifies an output process wedge. CADR Telnet and Genera protocols expose profile-specific More support. A recreation MUST NOT apply one global More policy.

Send String and file transfer

Genera Send String and raw Send File bypass the outer More/Escape filter while retaining their selected downstream path. Marked or recorded text yanked as Terminal input traverses the full input chain; an embedded current escape may therefore invoke local command mode. This observable distinction MUST be tested.

Raw Send File restores the progress label through its selected unwind path but lets other errors propagate. Nonraw transfer operates on the raw network stream: type-in interrupts type-out into a wait, performs transfer, signals completion, waits for an acknowledgement, sleeps, and wakes type-out. A missing callback acknowledgement can deadlock. Send defaults to raw text; Receive defaults to XMODEM. Cancellation, type-out failure, callback loss, partial file I/O, disconnect, and label restoration MUST each have independent tests using project-owned data.

Output recording and wallpaper

Dynamic Windows output recording enables retained output and marked-text interaction, but destructive remote cursor protocols may restrict meaningful history to one screen. The exact connected-world limit remains TODO-ORACLE-G-HISTORY-* per protocol.

Wallpaper is an output journal, not screen serialization. It writes characters and format effectors before or with rendering. Same-row left movement emits backspaces; same-row right emits spaces. Row change emits at most one newline when moving down, none when moving up, followed by spaces to the requested column. More handling temporarily disables journaling. A journal write error offers the selected close restart and then closes/disables the file. Tests MUST compare exact bytes for left, right, multirow up/down, newline, format control, write failure and replacement failure.

Genera login-protocol registry

NT-G4521-U445-SRC declares seven extensible login protocols:

Desirability participates in service selection; it is not a performance ranking. Registry order and content remain extension points. The selected source's builtin simulator registration ends in front-pushed order VT100, Ambassador, Imlac, Glass, but a live world registry census is required before claiming that exact runtime list.

Telnet negotiation

Both families implement historical Telnet subsets, not an abstract modern terminal library. A strict profile MUST preserve its exact negotiation state transitions, including duplicate or asymmetric responses.

Genera negotiation begins upon the first received IAC. Before consuming that command, it emits DO Echo and DO Suppress-Go-Ahead. If the same command is WILL Echo, the initial false-to-true echo transition emits a second DO Echo. The conformance matrix MUST cross first-IAC/steady-state with WILL, WONT, DO, DONT and each supported or unknown option; it MUST include Binary opt-in, Echo state, Suppress-Go-Ahead, Timing Mark, Logout, SUPDUP-OUTPUT, subnegotiation termination, doubled IAC, malformed input, and unknown command.

Selecting remote echo stops new local-echo enqueueing but does not clear an existing queue. In the selected scalar output filter, queued echo can replace an already-read peer value rather than requeueing it. The Genera companion makes this strict defect, fast/listen behavior, and corrected-profile boundary normative.

The companion specifies every response. Standards RFCs are a cross-check; strict selected-source output wins even when redundant or unusual.

NVT character translation

Genera Telnet begins with an ASCII identity table and named Lisp-machine overrides. Control reduces the base code to five bits. Meta flips ASCII letter case before setting bit 7. Super and Hyper are not encoded by this filter. Unmapped codes are consumed. Scroll moves locally forward; Meta-Scroll and Back-Scroll move locally backward. Return emits CRLF when transmit-binary is false; IAC doubles.

The selected bounds check rejects values greater than octal 400, not greater than or equal. Exact octal 400 can index past the 256-element table. NT-G4521-U445-SRC strict-defect mode MUST reproduce the fault; corrected mode MUST be explicitly labeled.

CADR character tables, modifier folding and gateway behavior are specified in the CADR companion. Manual Lisp signatures and default Break/Network wording are not authoritative when they contradict maintained code.

SUPDUP and Intelligent Terminal Protocol

Strict SUPDUP tests MUST cover:

• terminal-variable count, packing, dimensions, option bits and location bytes;
• ASCII greeting consumption through the no-operation delimiter;
• literal protocol-escape quoting and nonzero bucky-bit encoding;
• logout and cursor-position reports;
• every implemented and explicit no-op display-code slot;
• old/new cursor coordinates and screen-bound behavior;
• erase, insertion/deletion, regions, reverse/attribute and reset;
• bell coalescing;
• GT40, ARDS, SUDS/local-editing and graphics state only in profiles that select those mechanisms; and
• malformed, truncated and out-of-range sequences with partial-render state.

RFC 734 describes SUPDUP as independent of Telnet and defines the initial terminal variables, ITP quoting, display codes, and logout/location conventions. RFCs 736 and 749 describe distinct Telnet option paths. A recreation MUST keep native SUPDUP, Telnet SUPDUP negotiation, and SUPDUP-OUTPUT framing distinct.

Genera ITP's complete octal 200–377 table and CADR's release-specific mapping are normative companion inventories. Unmapped positions are consumed. Boundary handling and malformed bucky quoting require byte tests.

Other Genera protocol inputs

• 3600 ordinary characters emit the selected tag/modifier/code triple; only Logout among list events emits zero.
• TTY Interrupt flushes/finishes output and sends Break; other list events beep; codes at or above 128 become Escape plus low seven bits.
• CHAT consumes and beeps for every list event, so interrupt/logout list signals are unavailable through that filter.
• LISPM-null passes full Lisp characters to a character stream; exact list-event failure remains TODO-ORACLE-G-LISPM-LIST.

3600 output and SUPDUP-OUTPUT

The Genera 3600 decoder has eight selected opcodes and an initial geometry/location exchange. Every opcode, operand length, cursor/display effect, malformed/truncated case and initial exchange byte MUST be tested.

SUPDUP-OUTPUT is framed within Telnet negotiation and feeds counted Supdup display records into the Supdup state block. Every counted-stream read, including effector operands, decrements the count. Negative count is a hard error without success-trailer consumption. Exact zero discards two arbitrary bytes, then short-circuits its trailer check: a non-IAC candidate fails without reading another byte; only IAC causes one more read, which must be SE. Prior display effects are not rolled back. It MUST NOT be treated as a native SUPDUP connection. CADR's optional mouse report and who-line change belong to its source profile; equivalent Genera behavior must be proven separately.

Glass

Glass masks ordinary data to seven bits and implements printing, wrapping, tab, bell, backspace, CR/LF and the selected CR lookahead. The lookahead MUST distinguish LF, NUL, timeout, repeated CR and other-byte recursion. Tests MUST include end-of- stream and error during lookahead.

Imlac and old display facilities

Imlac, GT40, ARDS and SUDS names denote different historical mechanisms. A recreation MUST use the selected companion inventory and MUST NOT collapse them into one “graphics terminal” switch. That inventory includes Imlac's unchecked lower and upper dispatch bounds and GT40's ten-cell item array, mutation-before-error order, and checksum boundaries. CADR telnet-front-hack.lisp does not establish a separate user application. Genera's remote-terminal server files do not expand the outgoing simulator command table.

ANSI, Ambassador, and VT100

The selected Genera ANSI parser implements an explicit subset. Unknown or unsupported sequences are consumed/ignored. Cursor operations are delegated to the viewport without an extra parser-level bounds check. SGR examines only the first parameter: 0, 1, 4, 5 and 7 select ordinary, bold, underline, blink and reverse state; unsupported first values yield NIL/ordinary behavior. Blink is stored but has no selected drawing branch, so source-profile rendering is ordinary.

VT100 installs only four directional input translations to ESC [A, [B, [C, and [D. ESC = and > mutate a keypad-mode slot that this selected file never reads. Device reports, cursor-position reports, broad keypad/function translation, tab controls, REP, many modes, and many VT52 operations are not established features. An implementation MUST test the dead keypad state and MUST NOT infer commented or unread behavior.

The Genera companion gives the exact supported CSI/ESC inventory and Ambassador deltas. Connected System 452.22 timing and pixels remain runtime oracles.

Failure classes

Every test result MUST classify failure as one of:

• argument/parser cancellation or local accelerator error;
• host/path/service resolution failure;
• stream acquisition failure;
• greeting/negotiation failure;
• input translation failure;
• output decoding or display-effect failure;
• local command or option-application failure;
• file/journal failure;
• peer EOF/close/network state transition;
• process reset, interrupt, wait, acknowledgement or lock failure;
• disconnect/logout/close/reset failure; or
• window selection, exposure, bury, kill or reuse failure.

The trace MUST record the last completed stage, owned resources, bytes already sent, display effects already committed, pending process wakeups, label, connection state, and next recovery path.

Strict partial-state behavior

Historical strict profiles MUST preserve effects committed before a fault. They MUST not roll back display mutations, sent bytes, closed old wallpaper, earlier Network-X options, committed stream, or already reset filter blocks unless the selected source does so. Corrected atomic behavior MAY be offered as a separately named profile.

The test suite MUST inject a fault immediately before and after each connect and disconnect stage, each simulator splice stage, every journal/transfer I/O call, output-lock acquisition/release, process wait/acknowledgement, Telnet negotiation write, Supdup operand read, and viewport mutation. Deadlock-prone cases require a bounded harness timeout and an explicit “historical stall reproduced” result rather than an unbounded test hang.

Unbound and unsupported behavior

An unbound local key MUST follow the selected beep/cancel/fallthrough behavior. An unsupported protocol operation MUST follow its explicit no-op, WONT/DONT, beep, consume, error, or remote-pass rule. A missing optional menu handler MUST be absent, not disabled-looking unless the historical resolver produces that state. A strict profile MUST preserve source-visible table-boundary errors and stale Help where selected; a corrected profile MUST list each correction.

CADR source-injected witness

Runtime observation: a maintained-source Supdup window injected into the isolated System 303-0 band, captured 2026-07-19. The sparse frame establishes the selected surface, who-line, and disconnected label only. Underlying software and display material remain the property of their respective rightsholders; reproduced for criticism, scholarship, and historical documentation under 17 U.S.C. section 107. No affiliation or endorsement is implied.

Runtime observation: an explicitly constructed maintained-source Telnet shell in the same isolated System 303-0 session. It establishes only the distinct Telnet label and shared full-screen relationship. It does not prove successful process startup or connection behavior. The same attribution, scholarly-purpose, no-endorsement, and asset-license exclusions apply.

The base band already reported prior definitions from SYS: WINDOW; SUPDUP, but its live System Help exposed no System-S/System-T registrations. Loading the pinned maintained source through the isolated FILE bridge accepted redefinitions. Supdup could expose a window; its background type-in later encountered the expected absent peer/path boundary. Ordinary TELNET-SEPARATE after source injection reached an unbound TYPEIN-PROCESS state, so the second image was made by explicitly constructing a Telnet window with NIL process slots and selecting its disconnected shell. These facts MUST accompany the images; neither is a pristine compiled-band behavior claim.

System 46 remains a screenshot blocker: no matching runnable System 46 band is configured. TODO-ORACLE-C46-VISUAL requires a legally sourced matching band and a fresh reviewed capture rather than treating System 303 pixels as System 46.

Genera runtime witness

Runtime observation: Genera 8.5/System 452.22 immediately after local login and Select T, captured 2026-07-19. It establishes only the disconnected prompt, blank surface, scrollbar, bottom label, who-line, and their relative geometry. Underlying Symbolics software and display material remain the property of their respective rightsholders; reproduced for criticism, scholarship, and historical documentation under 17 U.S.C. section 107. No affiliation or endorsement is implied.

The live prompt is Connect: (the name of a host), not the manual article's wording, and the rendered label is Terminal 1. The image cannot reveal the source-profile's hidden label tag or prove when label recomputation occurred; that relationship remains TODO-ORACLE-G-INITIAL-LABEL. The image contains no Help prose, source, peer data, manual, artwork or private content. It does not establish completion choices, connection, negotiation, commands, scrollback depth, simulator behavior, or source-to-world identity.

Runtime provenance

The CADR session d10-network-terminal-cadr-20260719, generation 1, ran from 2026-07-19 20:18:02 through 20:37:43 EDT. It used load band System 303-0; public and private-start disk SHA-256 bb16e46ad81decfe1efe691d36b6aa4ce3fd4ffb82474365de3520989d397cb5; System source check-in 4df393c68d7f083ce42d5c377039d26043cc18a9031ace28258dc97f4137eb91; unchanged private System tree SHA-256 21f5215de973aa6ccbddb817f2d64edd95ee1014c3028a9b0711ea7c741b807e; and usim start/execution SHA-256 707a77d23e28ea1c45ae0eb0145dc181fa7ba649b9defc30044d4f847ac2c5be. The 768-by-963 client was LOCAL-CADR [running], XID 2097202. The final run record is 6,999 bytes with SHA-256 6b5e4ce28ae58c4a0acf51e77e381b4abc33e26875abc89201112a7bb66a12b4. Shutdown was clean: forced_stop=false, state_may_be_incomplete=false, emulator and Xvfb exit status zero, and public base disk unchanged.

The Supdup raw capture 0020-supdup-connect-prompt.png is 768 by 963, PNG SHA-256 52c53d7b51c3298a7eb037c815bbbb6c76dcfd19dd54ebf3549abb1e16bead02, pixel SHA-256 3205f9174f16cdda83ce66ba03778e2452b9ee5f04c56411f83613ee1996e9e8, with 4,438-byte sidecar SHA-256 244ed5b6c81790dfd00d39438bded3acea6124bf01cac62fcfe7305b072c3c52. The Telnet raw capture 0025-telnet-disconnected-shell.png is 768 by 963, PNG SHA-256 310c63af5118102151afe2e9dd7025f2ddf564f34fb999762fee247aeb1dd802, pixel SHA-256 bf54d03936d07b0c74d3071f124f53d7f923f3969ac75371ec172b61d3b7b6d9, with 4,442-byte sidecar SHA-256 e5b78a6bfe6d2a244da3d3955f3d2f9f325a672bc110e4f4db7f4343f1d95cea.

The Genera session d10-network-terminal-genera-20260719, generation 1, ran from 2026-07-19 20:18:06 through 20:38:02 EDT. The base/private-start world is 54,804,480 bytes with SHA-256 a8ee5e86cc7e322f7385af3e0cd579d7650d4dcfc3ce328acbf8b25515dd0672; VLM SHA-256 9f5e18d5770f973879716182b6856ef5a8ee9d3b2bb907476ea0cf35986aa4c7; debugger SHA-256 2db918cfe8f35f52c7ff4b7695b0ecd3bb85e41a3327ea5a94874edf05edb54a; and harness Python execution SHA-256 c47ca320afb058d802ebd469fd9183e60ce5106eea15044295e98412700a5fcc. The 1200-by-900 main client was Genera on DIS-LOCAL-HOST, XID 2097158 at (72,55).

The screenshot is an exact copy of raw 0003-terminal-disconnected.png: 1,364 bytes, PNG SHA-256 767a9da73f8ec9c24b778cca9337a1f4cfcd66ed69527f48ac6a79edd4b2616c, pixel SHA-256 33a071812b9d5467d9b94df81cc367a3012f1f88c778a464c31359174feddbca, with 13,757-byte sidecar SHA-256 0dd4484920d5e20fa96f11ea4e30dba32c9823e170a9422cb20ed09eb1ad1e9b. The sidecar freezes the four-record action prefix at SHA-256 e0cdc56994bf9a29b69d4c5f08391df47821eeec0ff418d11f5561bc2437dc52: local login and Select T, each with a successful linked outcome. A later Network- Help probe stayed raw and untracked. The final six-record action log is 3,158 bytes, SHA-256 96928167fa6e35b4810ad2bfe6c9c9fdd639be084c09e44df8ac902266b84d83.

The final Genera run record is 26,230 bytes with SHA-256 dff005f4dfd273ccdb95bff977bdea5750765af25ff79aa4ac6e697129087b3c. The shutdown prompt was observed, yes sent and accepted, and cleanup progress observed. The current VLM then reproduced its confirmed Cold Load mutex stall and required bounded termination: forced_stop=true, forced_after_confirmed_shutdown_stall=true, state_may_be_incomplete=true, and orderly_vlm_host_shutdown=false. The private world remained byte-identical. The harness invoked no Save World and created no process checkpoint; save/checkpoint state remains unknown except for those negative harness facts.

Visual compatibility rules

VISUAL-L1 requires semantic regions and relative relationships, not exact pixels:

• one full-screen terminal surface;
• logical cursor at the selected initial output position; a raster comparison MUST accept both blink phases, and the approved Supdup witness happens to show no visible cursor while the Telnet witness shows one;
• bottom application label and separate system who-line;
• CADR disconnected program/name suffix where selected;
• Genera left output-record scrollbar and prompt placement where selected; and
• no peer transcript in the disconnected state.

A product MUST NOT claim font, exact raster, gray level, cursor blink timing, border thickness or pixel identity from these images. A screenshot comparison MUST mask the host X position and compare semantic bounding relationships with recorded tolerances.

Profile, artifact, and registration tests

• NT-PROFILE-01: reject an untagged mixture of release profiles.
• NT-PROFILE-02: verify every public pin and evidence-only artifact identity.
• NT-PROFILE-03: prove System 46 canonical/shadow separation.
• NT-PROFILE-04: prove Genera source/manual/runtime separation.
• NT-ENTRY-C46-01: enumerate selected LMWIN System-S/System-T, Create and Lisp routes; prove the Escape-N numeric tree exists only under the shadow-lineage label.
• NT-ENTRY-C303-01: enumerate maintained Create-menu/Lisp/Peek routes and absence of current System-S/System-T.
• NT-ENTRY-G-01: enumerate Select-T, force-create, Create, direct and Peek routes; test idle/pending/connected reuse.
• NT-CLIM-01: assert TV/Flavors on CADR and TV/DW/CP on Genera; reject a historical CLIM-use claim.

Complete input tests

• NT-C-BIND-01: inject every CADR Network suffix, protocol availability variant, literal escape, Help/? alias, Rubout, unknown, cursor restoration and beep.
• NT-C-BIND-02: test separate versus bound exit/bury/return behavior.
• NT-C-BIND-03: inject every Lisp-machine character/list-event/modifier combination through Supdup and Telnet translators including table boundaries.
• NT-G-BIND-01: enumerate all 63 normalized fixed cells, case aliases and collision priority.
• NT-G-BIND-02: generate the exact (kind,value) argument automaton, including minus resets after Control-U/digits, minus then repeated Control-U, zero then Infinity, C-U/Infinity first-digit replacement, minus-zero sign loss, repeated digits, accepted/rejected leaves and Control-Meta-Y history modes.
• NT-G-BIND-03: Help repeat, ordinary successful exit, unknown reprompt, Rubout, literal escape, and escape-shadowing matrix.
• NT-G-BIND-04: test disconnected CP/Input Editor and Network-X Accepting Values incorporated trees.
• NT-G-BIND-05: exhaust all 96 raw pointer cells, winning handlers, optional Hardcopy/Image handlers, application marked-text behavior and unbound fallthrough.
• NT-G-BIND-06: execute Help command presentations and command-name presentations, including TODO-ORACLE-G-HELP-CY.

Lifecycle and state tests

• NT-C-LIFE-01: initial label, lazy process start, select/expose, reuse, connected resize rejection and process list.
• NT-C-LIFE-02: separate versus resource-bound ownership and selection substitute.
• NT-G-LIFE-01: all initial fields and the bounded live label/prompt; Create-fresh, generic Select reuse/Control-force-create, direct/Peek first-eligible lookup, process-flush-before-target order, pending-target exclusion, and no-eligible fresh allocation as distinct routes.
• NT-G-CONNECT-01: option precedence and all 18 ordered connect stages.
• NT-G-CONNECT-02: fault immediately before/after each stage and assert leaks/ partial state.
• NT-G-DISCONNECT-01: all nine teardown stages, logout order, second-cleanup and fault matrix.
• NT-G-PERSIST-01: reconnect persistence/reset of More, recording, overstrike, echo, escape, wallpaper, simulator, history and state blocks.
• NT-PROC-01: two actors, write lock, type-out error handoff, output tick, simulator race, reset and bounded deadlock behavior.

Host, command, option, and file tests

• NT-C-PATH-01: every host/contact/gateway/socket form, associated machine, decimal/octal discrepancy and failure class.
• NT-G-PATH-01: all seven connection keywords, service selection, wrong stream kind, case-sensitive simulator names and host defaults.
• NT-G-CMD-01: all 16 unique command definitions; parser-only Connect; Help omissions; numeric rejection.
• NT-G-OPTION-01: Accepting Values cancel/success and exact nontransactional apply order with every failure position.
• NT-G-MORE-01: pending More with ordinary event, escape, repeated state, error and disconnect.
• NT-G-SEND-01: Send String versus recorded-text yank with embedded escape.
• NT-G-FILE-01: raw/nonraw send, receive, format defaults, partial I/O, cancel, callback stall, disconnect and label restoration.
• NT-G-WALL-01: exact journal bytes for text/effectors/cursor moves and all failures.

Protocol and simulator tests

• NT-TELNET-01: full first-IAC and steady-state command/option matrix, binary, local echo including retained queue and scalar replacement, CR, IAC, malformed subnegotiation and unknowns for each selected family.
• NT-SUPDUP-01: terminal variables, greeting, every display slot, ITP table, modifiers, logout, graphics/old-display closures, malformed/truncated input and partial effects.
• NT-SUPDUP-OUTPUT-01: Telnet negotiation versus native SUPDUP; count every opcode and operand read, exact-zero trailer success, negative-count no-trailer failure, non-IAC short-circuit versus IAC/non-SE consumption, truncation at every read, and retained partial display effects.
• NT-G-3600-01: input triples, logout, initial exchange and all eight output opcodes.
• NT-G-TTY-01: ordinary, high-bit, Break, unsupported list event and flush order.
• NT-G-CHAT-01: ordinary and every list-event beep/consume path.
• NT-G-LISPM-01: character-stream behavior and TODO-ORACLE-G-LISPM-LIST.
• NT-G-GLASS-01: all controls and CR lookahead cases.
• NT-G-IMLAC-01: binary/CR paths, literal escape operand 1, valid operands 2 through octal 201, lower/upper unchecked bounds, and force-before-index-error order.
• NT-G-ANSI-01: exact supported ESC/CSI inventory, unsupported consumption, defaults, first-only SGR, attributes, bounds, ordinary blink and malformed input.
• NT-G-VT100-01: four arrow translations, keypad-slot mutation/no-read, and absence of unimplemented report/function behavior.

Runtime, visual, rights, and provenance tests

• NT-RUN-C303-01: reproduce System Help registration result and source bridge load; distinguish compiled definition, source-injected Supdup, and explicit Telnet shell.
• NT-RUN-G85-01: local login plus Select T; compare prompt, label, scrollbar, surface, who-line and geometry.
• NT-RUN-PEER-TELNET-*: deterministic no-route peer with exact byte trace, display checkpoints, faults and cleanup.
• NT-RUN-PEER-SUPDUP-*: equivalent native SUPDUP peer.
• NT-RUN-PEER-TELSUP-* and NT-RUN-PEER-3600-*: profile-selected peers.
• NT-RIGHTS-01: exact reviewed asset bytes, limited scholarly placement, attribution/no endorsement, project-license exclusion and no raw/build links.
• NT-PROVENANCE-C-01: join CADR sidecars to final run.json, including usim_sha256_at_exec, clean stop and unchanged base.
• NT-PROVENANCE-G-01: join Genera sidecar prefix to final action/run records, isolation, exact substitutions, time reply, forced shutdown stages, unchanged world and Save World/checkpoint unknowns.

Acceptance rule

A conformance report MUST list every selected test ID as pass, fail, not applicable, or unresolved oracle. L1 may leave connected tests unresolved. L2 may not omit an input leaf. L3 may not leave a selected protocol byte grammar or fault stage untested. L4 may not claim a connected closure while any corresponding NT-RUN-PEER-* or source/runtime identity oracle is unresolved.

CADR

1. Start a fresh named CADR harness session and record load band, public revisions, private copy-time revisions/tree hashes, disk hashes, microcode/symbol hashes, toolchain and both start/execution usim hashes.
2. Complete boot without configuring an external peer.
3. Record live System Help before source injection.
4. If a source-profile comparison is required, load only the exact pinned public file through the private FILE bridge and record every redefinition/error.
5. Exercise disconnected entry and local commands with an inert network adapter.
6. For L3/L4, start a scripted peer inside the isolated environment and record both byte directions and display checkpoints.
7. Stop cleanly where possible and join every screenshot sidecar with run.json.
8. Label source-injected, compiled-band, partial-definition and historical-source observations independently.

Genera

1. Start a fresh named Genera harness generation from the licensed local archive and record every base/private artifact, helper, preload, responder and configuration hash.
2. Verify the Bubblewrap filesystem/process/network boundary, absent external route, absent guest-visible file service, absent MIT-SHM, and both exact X-protocol substitutions before accepting running.
3. Log in locally and use Select T; record every intent before XTEST dispatch and its linked outcome afterward.
4. Capture only sparse states required by a predeclared scholarly claim. Keep Help, manuals, peer content and raw sequences ignored absent separate review.
5. For connected testing, install only a deterministic project-owned peer inside the throwaway namespace. Do not add a host route or real login credentials.
6. Stop through the harness and record prompt, confirmation, acceptance, cleanup, forced-stall, orderly-host-shutdown and world-change fields separately.
7. Keep save_world_performed and guest_checkpoint_created unknown unless another oracle proves them; a changed world hash alone is insufficient.
